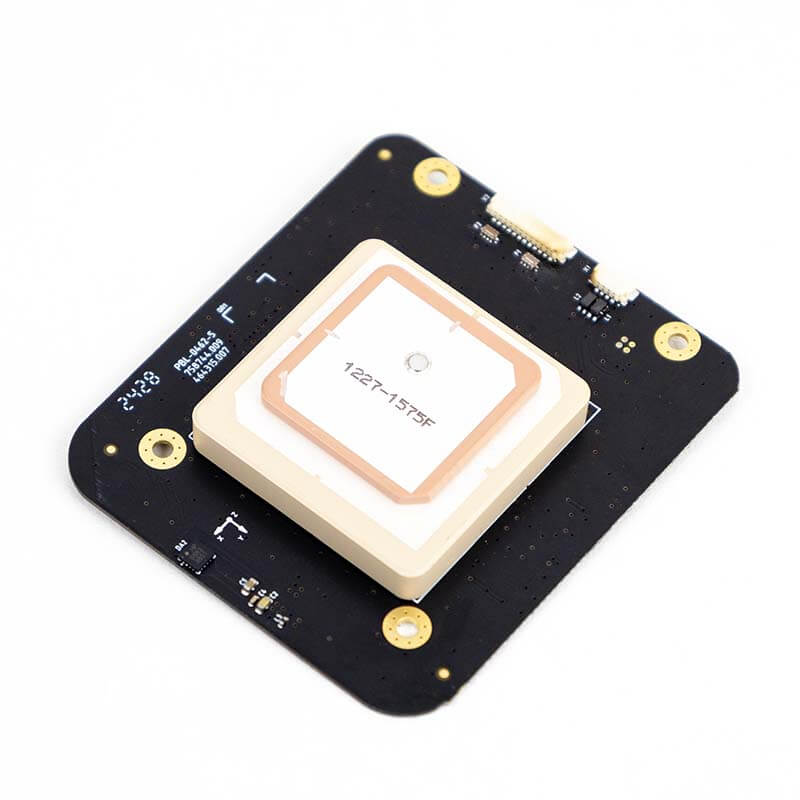

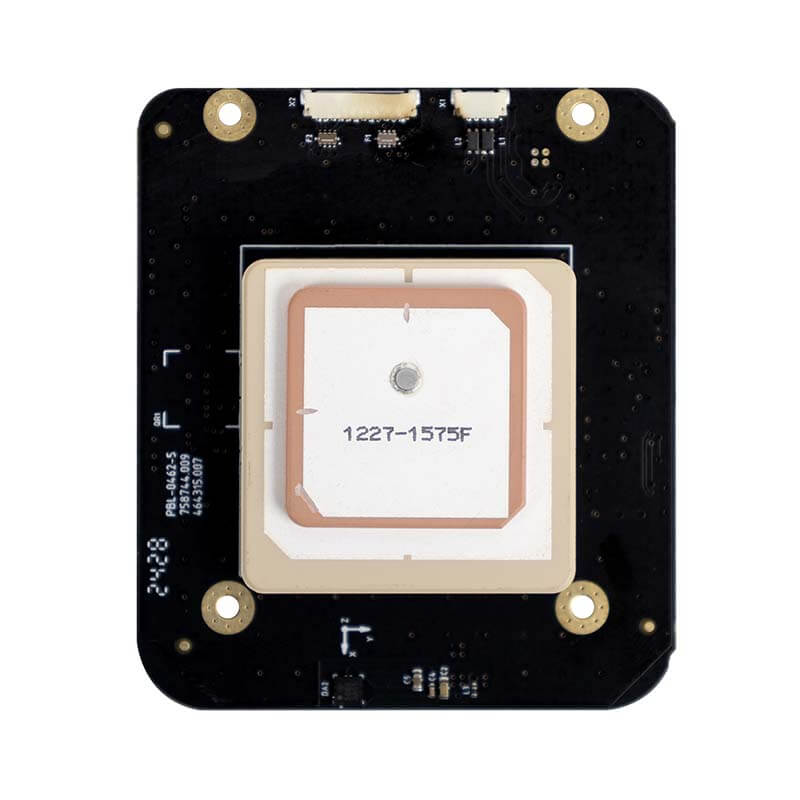

This product boasts GNSS satellite positioning functionality and can be configured with
4G full-netcom communication.It is applicable to various scenarios such as drone positioning,
lawn mower positioning, and machinery equipment positioning.
It supports the full-band satellite navigation and positioning systems of BD/GPS/GLONASS.
By receiving signals from the corresponding L1/L2 and B1/B2 frequency bands, the device
transmits data to the positioning module to achieve positioning functionality and then sends
it to the system platform.
Add to CompareApplication areas: drones | lawn mowers | mechanical equipment positioning
1. Multi-system and multi-frequency positioning: Supports GPS (L1/L2), BDS (B1/B2), and GLONASS (L1/L2) multi-systems, with 40 tracking channels to ensure precise positioning
2. Attitude parameter measurement: Utilizing the MCU and magnetometer sensor, it achieves XYZ three-axis and heading angle measurement functions.
3. Multi-interface data transmission: Equipped with dual UART serial ports and CAN interface, compatible with NMEA 0183 protocol, meeting diverse communication needs.
4. Signal optimization: Filter and amplify the received satellite signals to ensure stable output of positioning data.
5. Wide temperature range adaptability: Operating temperature -20℃~60℃, storage temperature -40℃~85℃, adaptable to different usage scenarios.
6. Dual-mode power supply: Compatible with 5V external power supply and VBAT battery power supply, flexibly adapting to power configurations.
7. Compact size: With dimensions of 66×57×9.5mm, the structure is compact, facilitating the integrated installation of various devices.
8. Convenient control: Equipped with control pins such as reset (RST_N) and boot (BOOT_N), facilitating debugging and device management.
| Antenna | |
| Frequency | |
| Polarization | |
| Impedance | |
| V.S.W.R |
| LNA | |
| Gain | |
| Noise | |
| Voltage | |
| Consumed |
