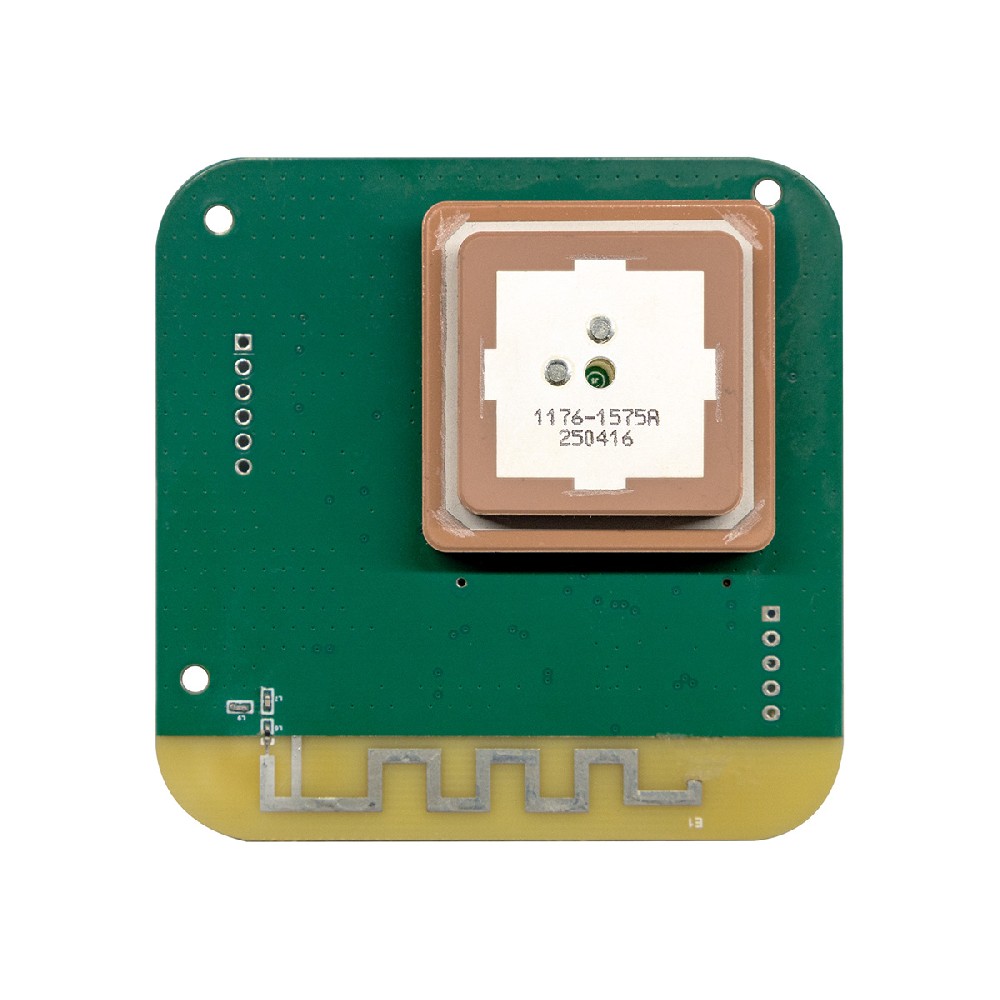

The product utilizes a high-performance dual-frequency RTK
positioning module for multi-systems, equipped with a full-band
satellite positioning chip that supports the new-generation
Beidou-3 signal system, as well as all global civil navigation
satellite systems including BDS, GPS, GLONASS, Galileo, and QZSS.
The antenna section is paired with an active built-in helical antenna
that supports multi-satellite and multi-frequency signal reception.
The antenna adopts a multi-arm structure to achieve dual-frequency
reception, supporting dual-band satellite navigation signal reception
for Beidou, GPS, GLONASS, and Galileo systems.
This meets the current needs for multi-system compatibility an
high-precision measurement, making it widely applicable in
high-precision navigation and positioning scenarios such as
portable devices and drones. The module integrates an
efficient power management architecture, providing a solution
for GNSS navigation applications that is high in accuracy and
sensitivity while low in power consumption.
It is widely used in navigation fields such as in-vehicle navigation,
consumer electronics navigation, and vehicle management.
The product is equipped with a low-profile, lightweight circularly
polarized air-dielectric antenna with an axial ratio of less than 3dB
within the band and an active system gain greater than 30dBi.
| Antenna | |
| Frequency | |
| Polarization | |
| Impedance | |
| V.S.W.R |
| LNA | |
| Gain | |
| Noise | |
| Voltage | |
| Consumed |
