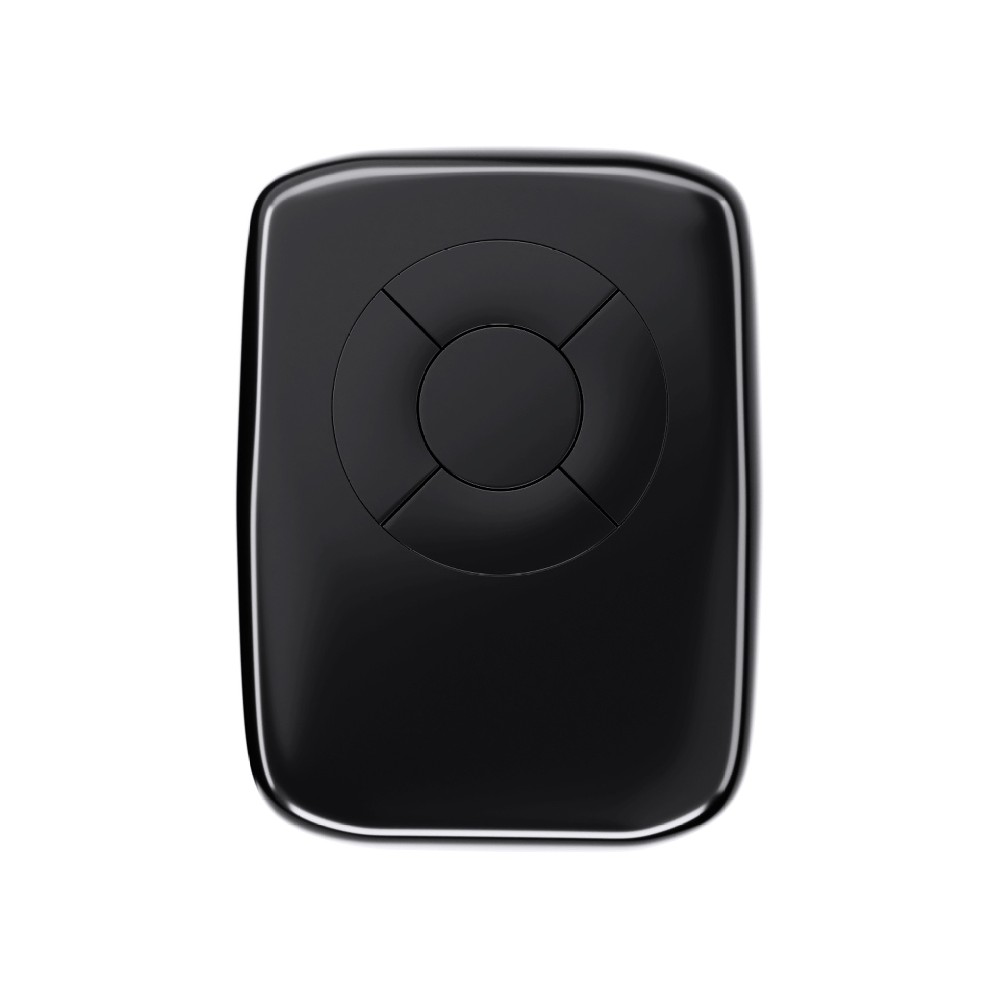

The GPS&BD antenna is a mainstream Beidou GPS antenna, GNSS navigation antenna and active GPS antenna, serving as a professional positioning and vehicle navigation antenna. Fully compatible with GPS and BDS systems, it is equipped with a high-performance LNA chip for excellent anti-interference performance. As a high-gain IP67 waterproof antenna, it supports vehicle external antenna and built-in GPS antenna installation. Mass-produced by reliable GPS antenna manufacturers, it is widely used in vehicle positioning, industrial control and outdoor monitoring scenarios.
| Connector | Mounting | Cable/Length | Other feature | Antenna | Patch Antenna | |||||||
| Centre Frequency (MHz) | Band Width (MHz) | Gain (dBic) | Supply Voltage (V) | Current consumption (mA) | Axial Ratio (dB) | Dimension (mm) | Gain (MHz) | Ex-band Attenuation | ||||
| / | / | / | 40.8*20*4.8mm | 1575.42±1 | CF±5 | 27.5 | 2.7-3.3 | ＜14mA@3.3V | 4 | / | 26±2 | / |
| Antenna | |
| Frequency | 1575.42±3MHz |
| Polarization | RHCP |
| Impedance | 50Ω |
| V.S.W.R | ＜2.0 |
| LNA | |
| Gain | 26±2dB |
| Noise | ＜2.0dB |
| Voltage | 2.7~3.3V |
| Consumed | ＜14mA@3.3V |
