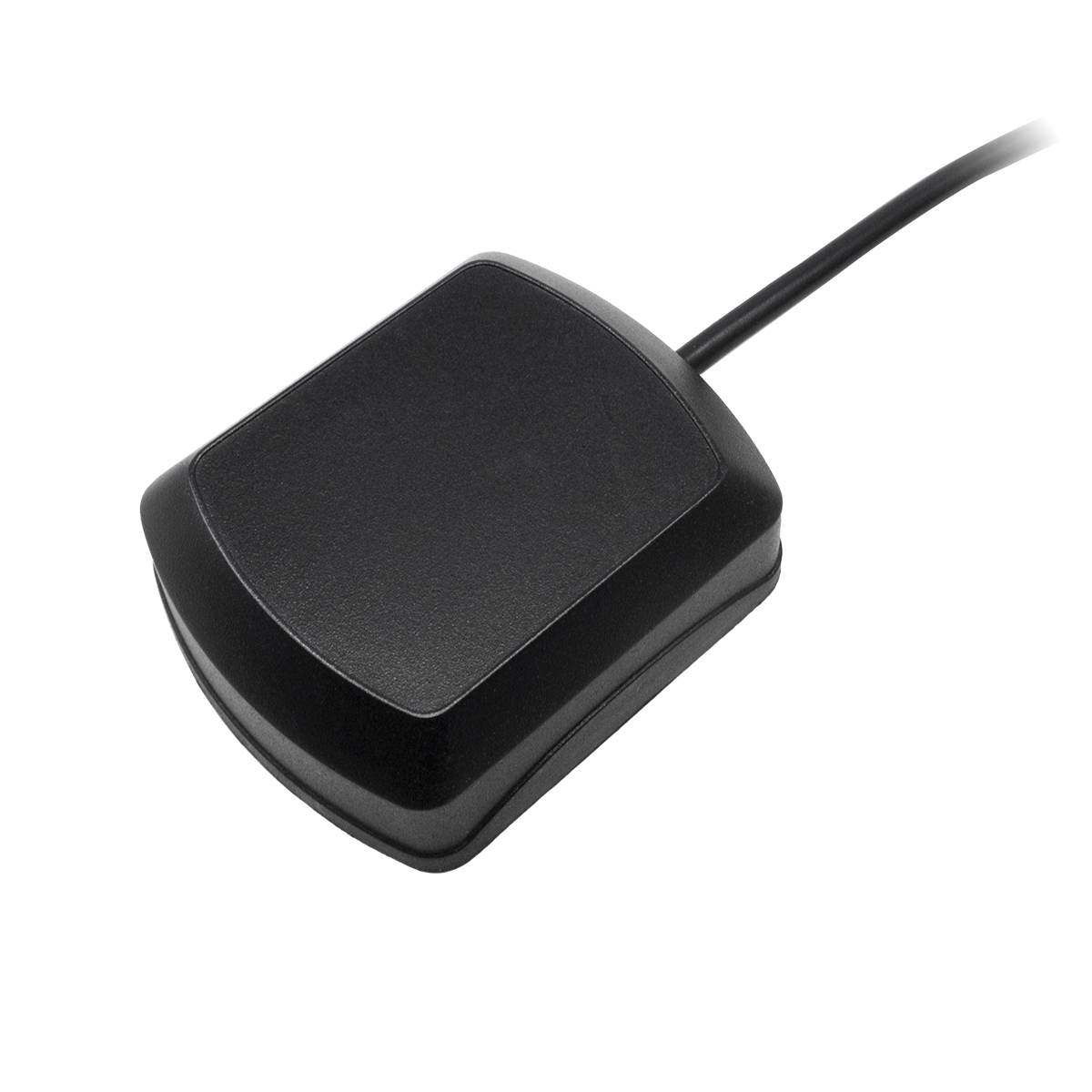

The GPS&BD antenna is a mainstream Beidou GPS antenna, GNSS navigation antenna and active GPS antenna, serving as a professional positioning and vehicle navigation antenna. Fully compatible with GPS and BDS systems, it is equipped with a high-performance LNA chip for excellent anti-interference performance. As a high-gain IP67 waterproof antenna, it supports vehicle external antenna and built-in GPS antenna installation. Mass-produced by reliable GPS antenna manufacturers, it is widely used in vehicle positioning, industrial control and outdoor monitoring scenarios.
| Connector | Mounting | Cable/Length | Other feature | Antenna | Patch Antenna | |||||||
| Centre Frequency (MHz) | Band Width (MHz) | Gain (dBic) | Supply Voltage (V) | Current consumption (mA) | Axial Ratio (dB) | Dimension (mm) | Gain (MHz) | Ex-band Attenuation | ||||
| SMA or others | Adhesive or Magnetic | RG174/3M | 45.2*35.8*15.1mm | 1575.42±3 | CF±5 | 30 | 2.2-5 | ＜15 | 3 | 25*25*4 | 28±2 | / |
| Antenna | |
| Frequency | 1575.42±3MHz |
| Polarization | RHCP |
| Impedance | 50Ω |
| V.S.W.R | ＜1.5 |
| LNA | |
| Gain | 28±2dB |
| Noise | <1.5dB |
| Voltage | 2.2~5.5V DC |
| Consumed | ＜15mA |
Get the latest product catalog
Provide you with one-stop intelligent network solutions
Your dedicated antenna consultant
24 hours to solve the intelligent network connection problems you encounter
Antenna Comparison (0)
2 to 4 antennas can be selected for comparison
Compare
Add to Compare
Product Specification

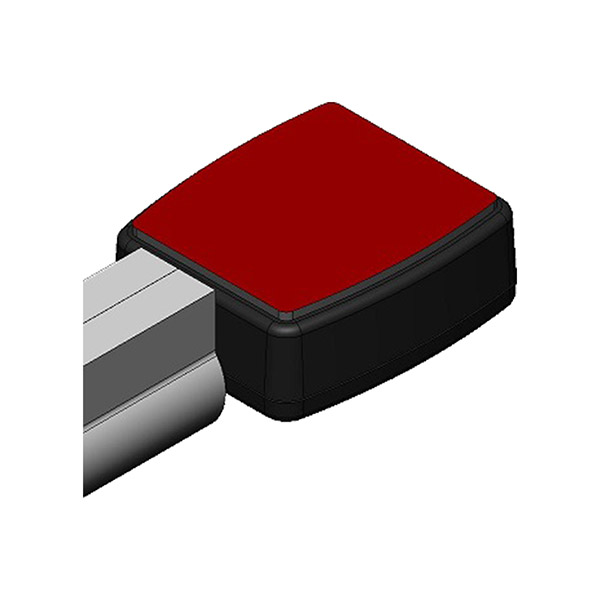

3D Drawings
